Vehicle doesnt shut off unless the lock 3x is used or timer runs out. 07 ford edge

0 votes
I followed the install instructions and programmed with two keys, and the it'll start, but I either have to way until the timer runs down or hit lock 3x. 2007 ford edge with evo all standalone.
fermer avec la note: brake status not detected on can-bus
posté Oct 29, 2017 dans la catégorie Ford par kyle skonieczny (180 points)
fermé Oct 30, 2017 par derek g

1 Réponse

0 votes

Meilleure réponse
What is the service number to the module?
répondu Oct 30, 2017 par derek g (346,560 points)
élue Oct 30, 2017 par derek g
Montrer 9 commentaires précédents
can high is to pin 3 on the DLC connector and can low is connected to pin 11 on the DLC
commenté Oct 30, 2017 par kyle skonieczny (180 points)
For some reason brake is not present on can on your vehicle. I suggest calling tech support for futher troubleshooting.



1-877-336-7797
commenté Oct 30, 2017 par derek g (346,560 points)

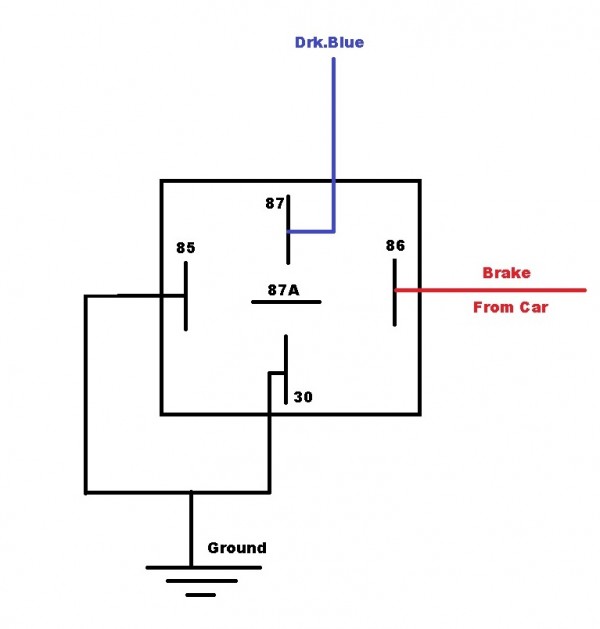

So per my phone call, to wire in a relay, I would need to wire 87 to dark blue wire, 86 to 12v out of brake pedal and 85 to ground and 30 to ground. Does that sound correct?
commenté Oct 30, 2017 par kyle skonieczny (180 points)

Here you go

commenté Oct 31, 2017 par derek g (346,560 points)
thank you for your help
commenté Oct 31, 2017 par kyle skonieczny (180 points)
