2017 Jeep Wrangler real parking light wire color. ?

Question

I followed the lead to look under the driver's seat and check the white/purple(found it) wire necessary for the evo one but at the tail light pigtail it looks like this wire is missing. The only wire that comes hot when the lights are on, is the orange/white wire at the tail light pigtail. Any advice?

Answer 1

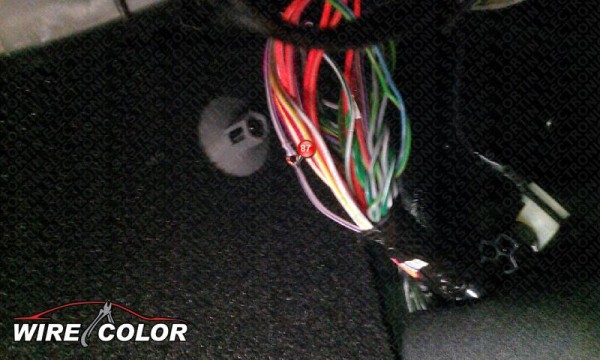

This should be the wire but this is in the passenger kick panel not drviers. It will show voltage when park lights are on.

Comments

I looked at the pigtail itself and the wire is orange/white. I punctured the purple/white and never turned hot... but the orange/white changed as soon as the parking lights were on.

I spliced it to that one instead (orange/white) to E1 (+)

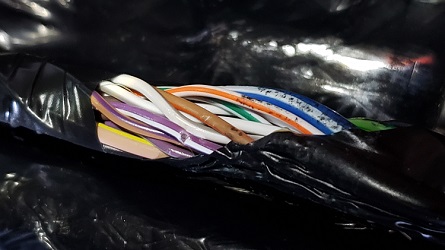

Orange/White wire same as pigtail with parking lights off

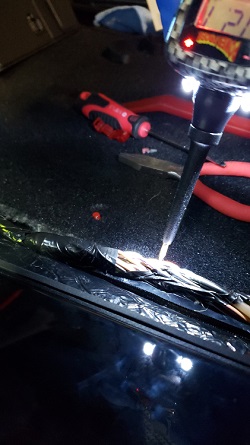

Orange/White wire same as pigtail with parking lights on



Hope this helps in the future the rest on 2017 Jeep Wrangler users
